Custom Parts Cart VCARVE PRO 12.5 ONLY (if you have older version use the DXF file instead)
Features
All the same features as the other parts cart with some added bonuses
Full instructions with photos on how to import
Notches and dados - Quicker and more accurate assembly. No more measuring, and no more jigs to ensure proper spacing, etc.
Improved machining - Minimizes vacuum loss by leaving an “onion skin” (0.012”/0.3048mm) for all features before performing through cuts to release parts from the stock (interior features, then parts profiling).
Improved divider geometry - Stronger dividers that also make placing parts quicker and easier.
Engraved slot numbering - Apply paint or colored epoxy to the numbers to quickly identify each assembly slot, along with the associated parts cubby below each assembly slot.

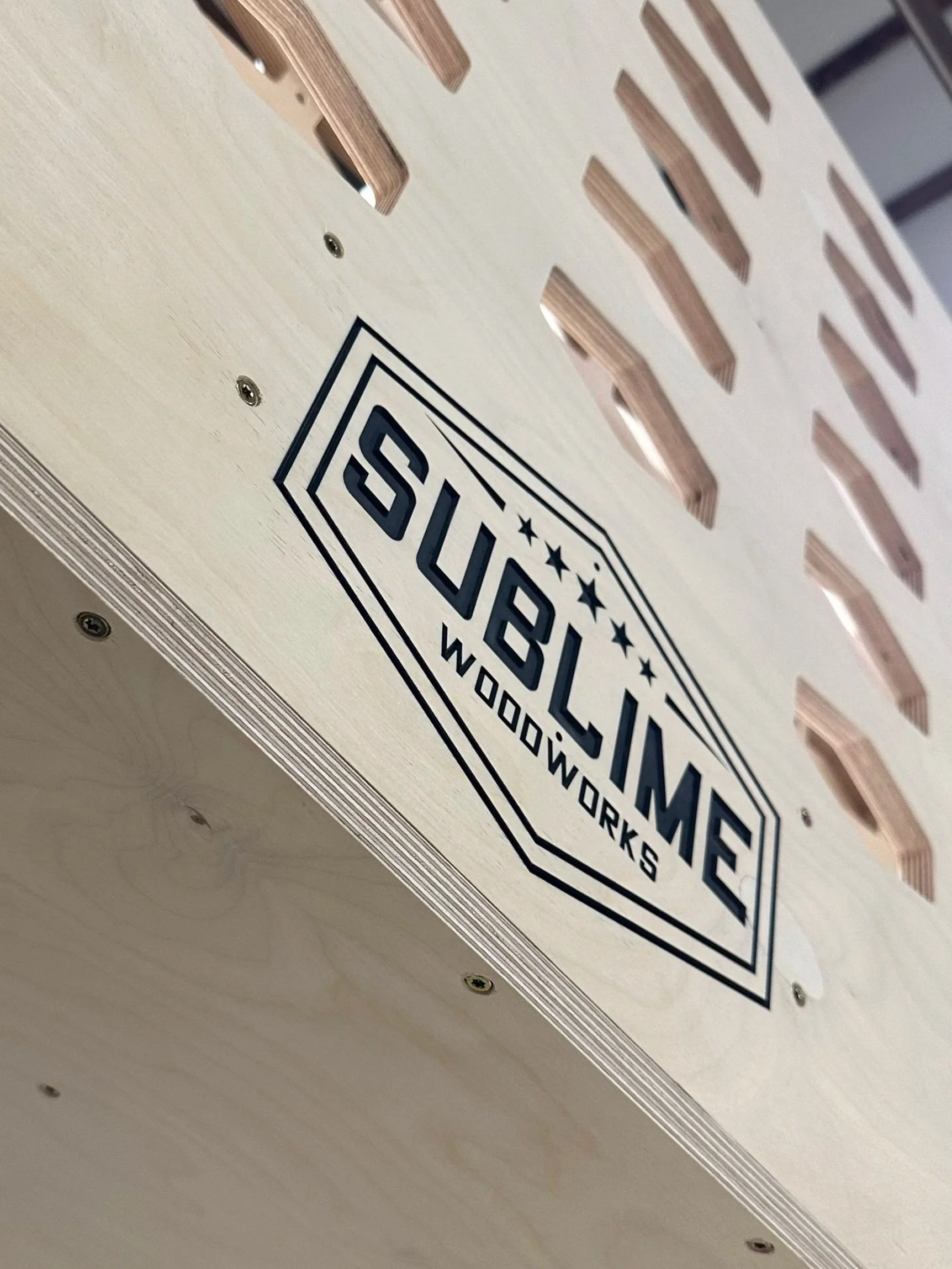

Branding - While files include Sublime Woodworks branding by default, your company branding can be substituted for a nominal upcharge ($25.00).
Added height - An extra inch has been added to the parts cubbies to accommodate taller parts along with full-depth cubbies for stretchers or nailers.
Rear Nook- For 1/4" backers or bigger panels
Weight Reduction - With the added cutouts cart weight was reduced by almost 60lbs.
Materials Used
6 sheets of 4×8 material
4" locking swivel casters, set of 4 with 1/4-20 x 1-1/4" long bolts with flathead tops
1/4-20 nylon lock nuts
GRK #8 x 1-1/2" R4™ star-drive flat head screws (137 screws total)
27 Lamello Tenso P-14 or Clamex P-14 connectors
Substitute
If Lamello Zeta P2 is not an option, you can use 18 Clamex S-20 connectors + 9 standard biscuits instead of Tenso/Clamex P-14.
Can also use a Domino of Biscuit Joiner
Tools Required
60° V-groove Bit
1/8” End Mill
3/8” Compression Bit
Other tools used:
Lamello Zeta P2 with positioning pins and a 6 mm alignment pin (Can shut off in Parameters if you don’t have a Lamello.
(The Lamello was used to secure the top of the cubbies to the bottom of the fixed shelf only)
Dimensions
Width 60”
Depth 33.75”
Height 40”
Cut Time: Roughly 3.0 hours but will vary on each machine
Sanding Time: Depends on how fast the neighbor kid can do it
Assembly Time: Roughly 3 hours
