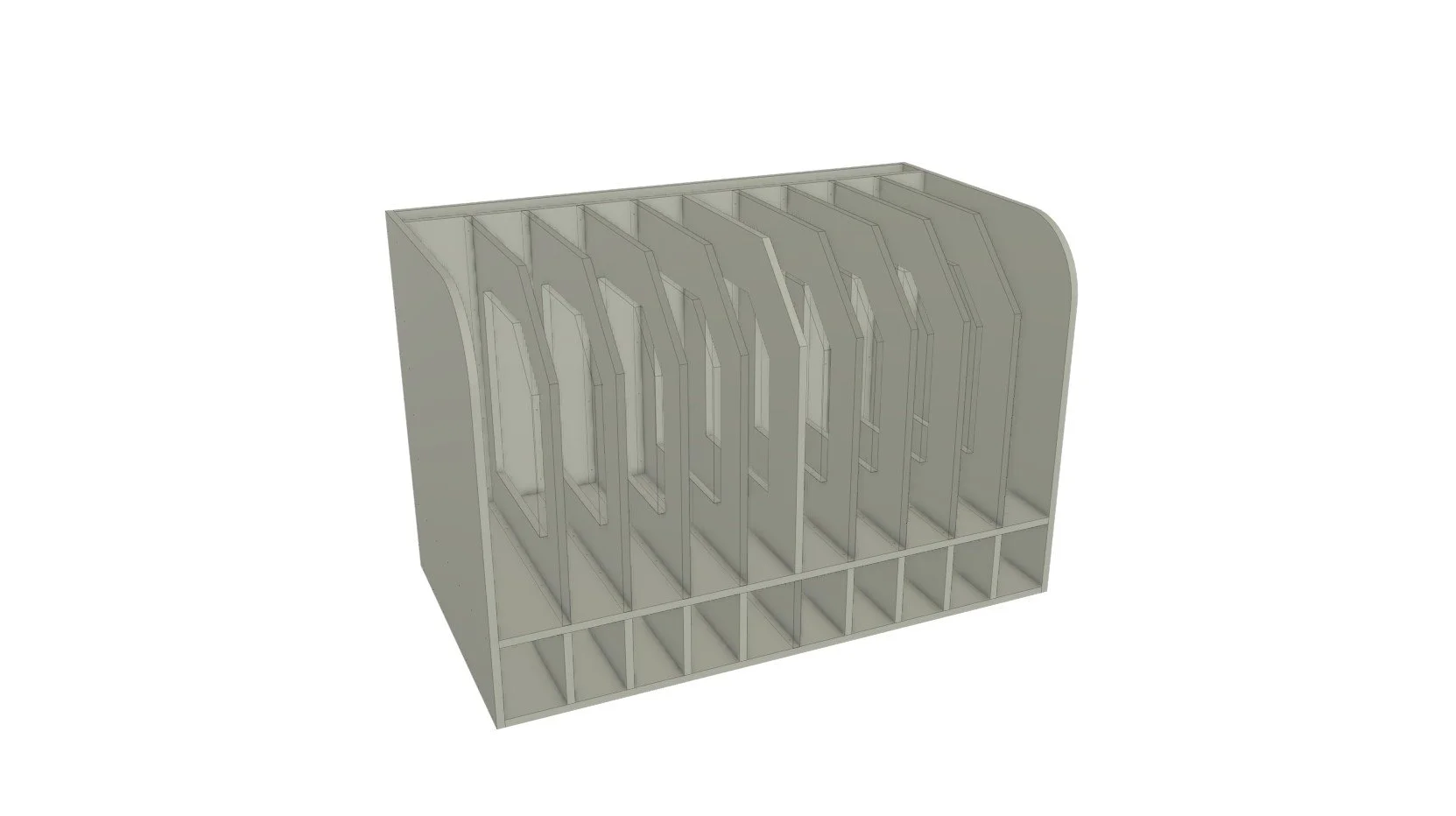

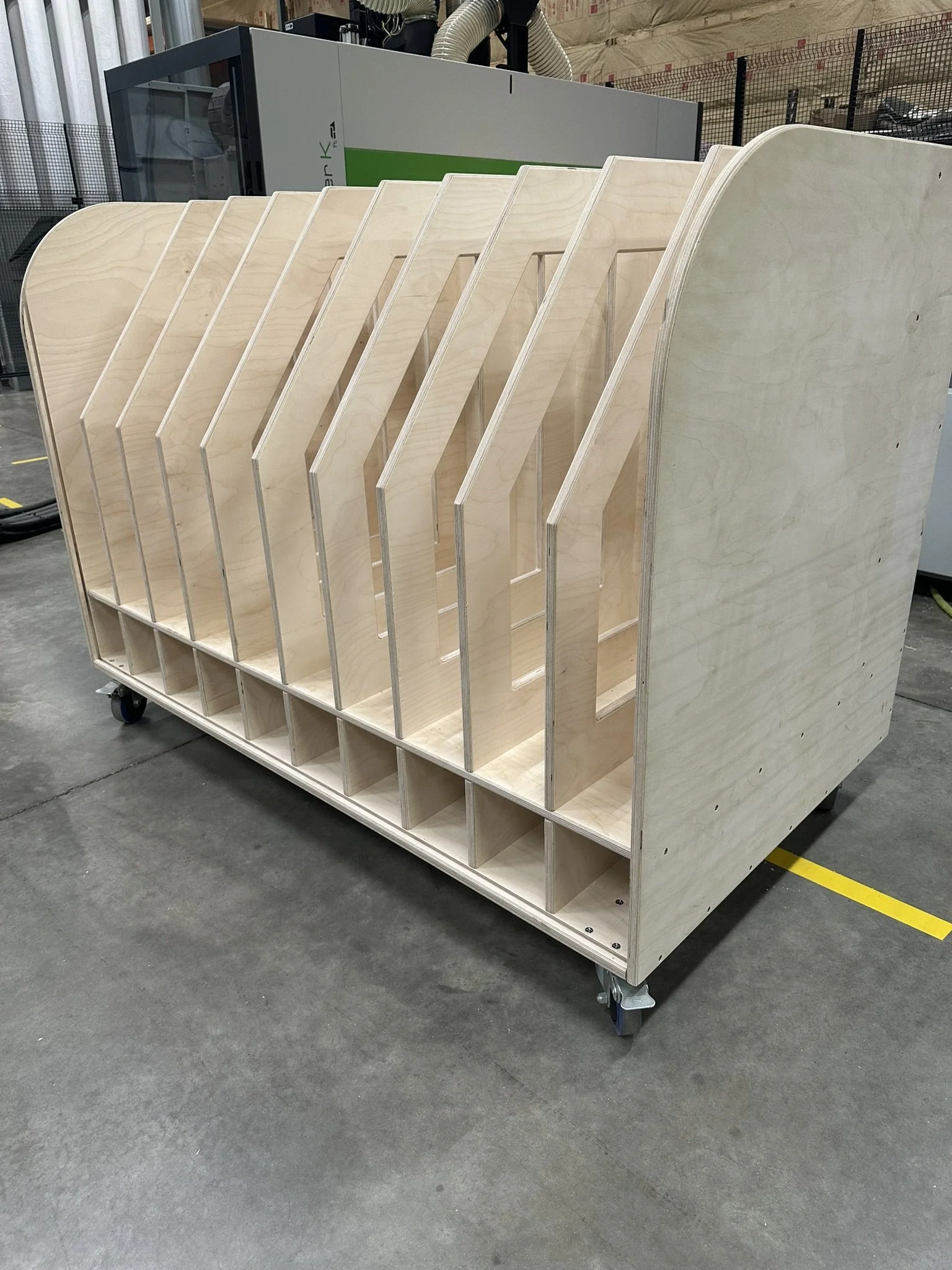

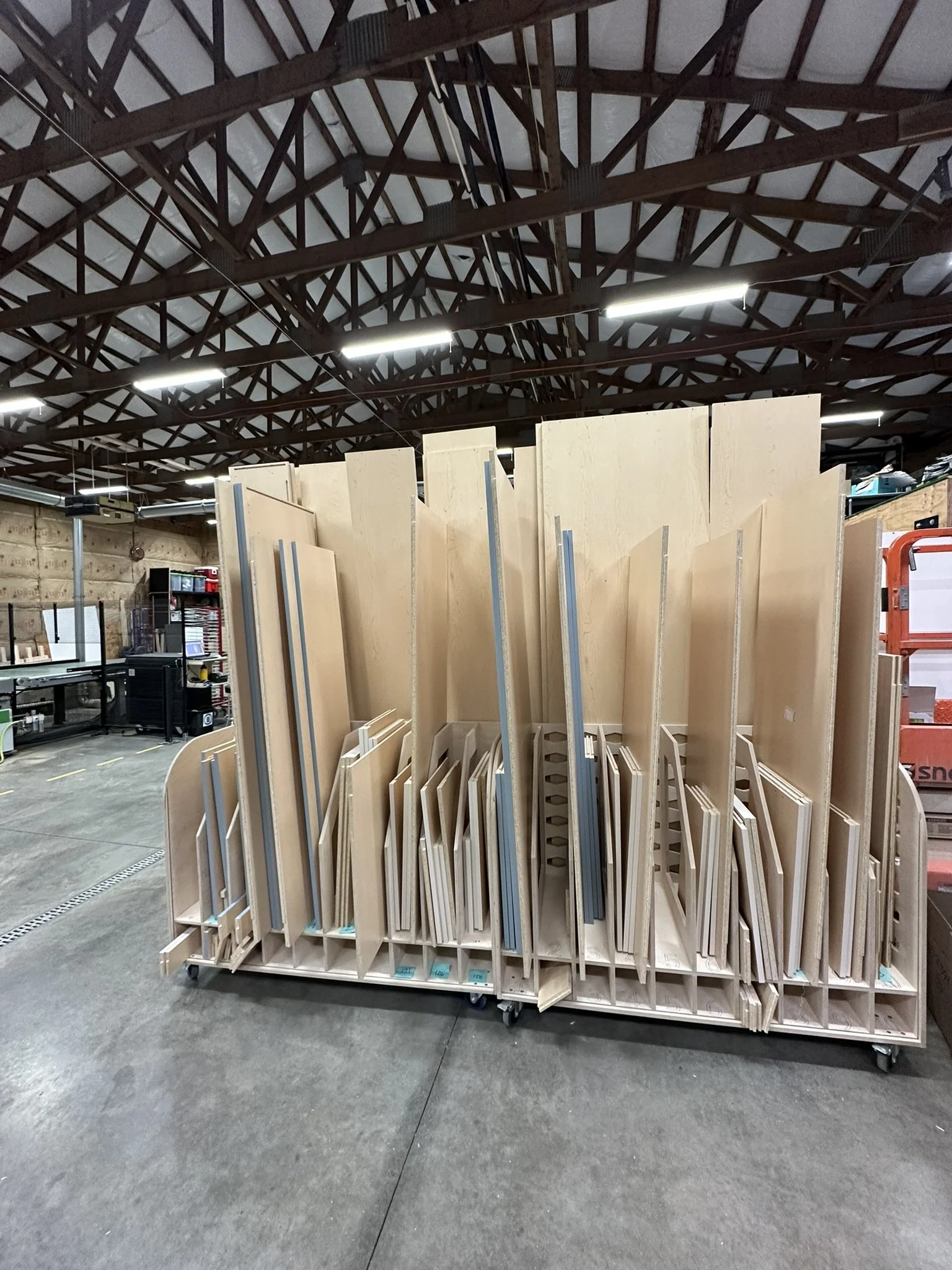

Custom Parts Cart
Features
Fully parametric in Mozaik — change dimensions/features and anything you want in the Parameters tab
Full instructions with photos on how to import into Mozaik
Full-depth bottom cubbies for stretchers or nailers
Divider Slots in the main part of the cart for sides, bottoms, tops, and doors
Rear Nook for 1/4" backers or bigger panels
Materials Used
6 sheets of 4×8 material
4" locking swivel casters, set of 4 with 1/4-20 x 1-1/4" long bolts with flathead tops
1/4-20 nylon lock nuts
GRK #8 x 1-1/2" R4™ star-drive flat head screws (137 screws total)
27 Lamello Tenso P-14 or Clamex P-14 connectors
Substitute
If Lamello Zeta P2 is not an option, you can use 18 Clamex S-20 connectors + 9 standard biscuits instead of Tenso/Clamex P-14.
Can also use a Domino of Biscuit Joiner
Tools for CNC:
3 mm drill bit (or equivalent in Imperial, this can be changed in the Parameters tab)
5 mm drill bit (or equivalent in Imperial, this can be changed in the Parameters tab)
6 mm drill bit (or equivalent in Imperial, this can be changed in the Parameters tab)
Cutout tool of choice
Other tools used:
Lamello Zeta P2 with positioning pins and a 6 mm alignment pin (Can shut off in Parameters if you don’t have a Lamello.
(The Lamello was used to secure the top of the cubbies to the bottom of the fixed shelf only)
Dimensions
Width 60”
Depth 33”
Height 40” (without the casters)
Cut Time: Roughly 1.5 hours but will vary on each machine, especially if you don’t have a drill block
Sanding Time: Depends on how fast the neighbor kid can do it
Assembly Time: Roughly 3 hours
Custom Parts Cart
Features
Fully parametric in Mozaik — change dimensions/features and anything you want in the Parameters tab
Full instructions with photos on how to import into Mozaik
Full-depth bottom cubbies for stretchers or nailers
Divider Slots in the main part of the cart for sides, bottoms, tops, and doors

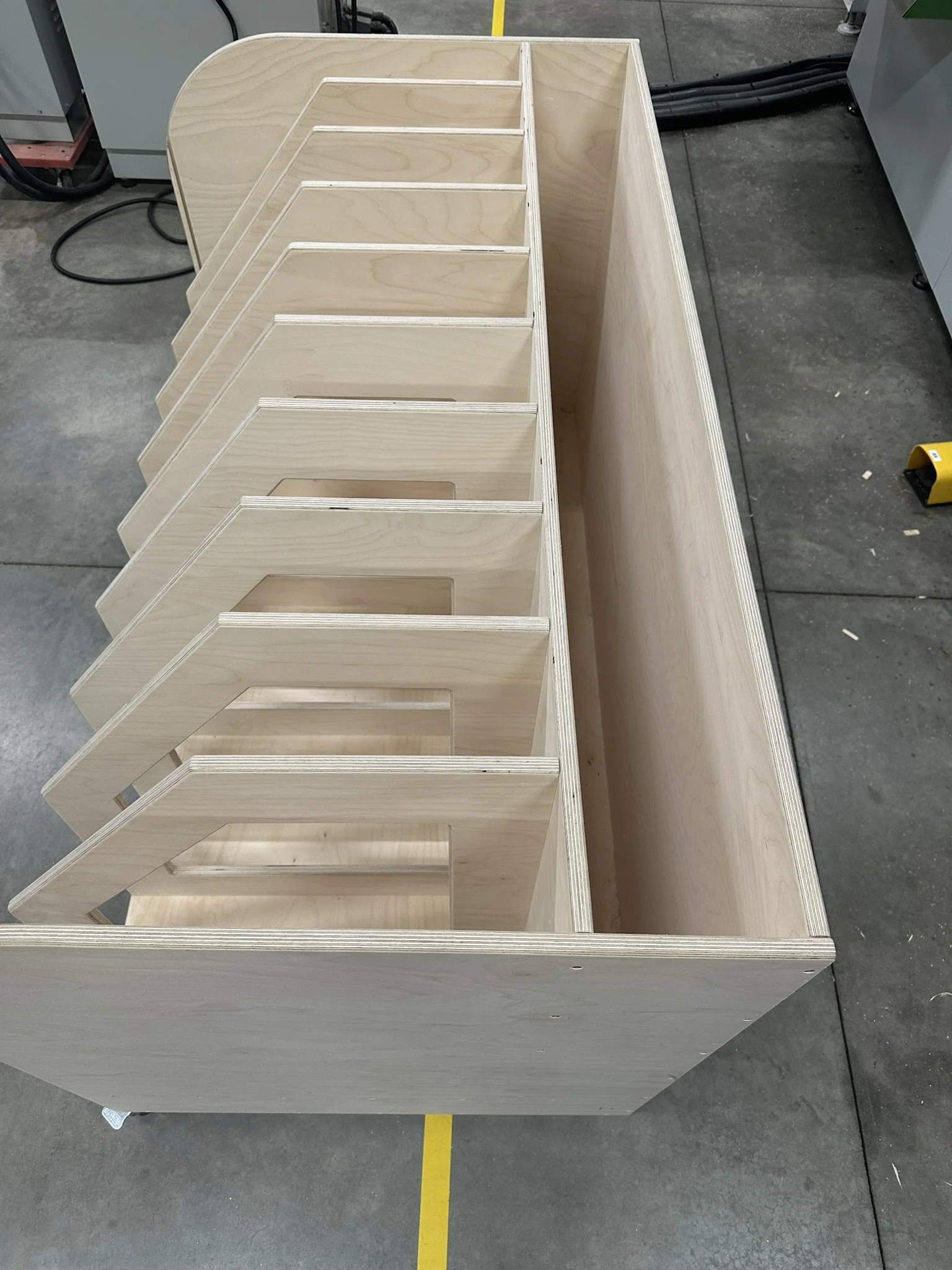

Rear Nook for 1/4" backers or bigger panels
